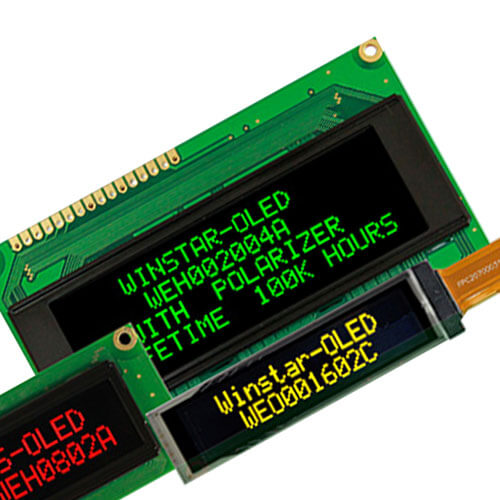

Character OLED Modules

Diamond HMI’s OLED modules are available in industry standard character display formats and can be used as drop in replacements for standard STN LCD modules. All modules 5V and have built in WS0010 controller which offers 4 standard fonts sets, English/Japanese, West European, Scandinavian European, and Cyrillic (Russian).

OLED character display modules are ideal for applications requiring low power consumption and exceptional viewing angle. These include coffee machine, POS systems, car audio units, set-top boxes, remote controls, medical equipment, Fitness Trackers and handheld/battery operated units.

Diamond HMI

Filter Options

    • Part No
    • Image
    • PDF
    • Manufacturer
    • Resolution
    • Overall Size
    • Viewing Area
    • Dot Pitch
    • Dot Size
    • Display Technology
    • Built In Controller
    • WEH000802A
    • Winstar
    • 8×2
    • 58×32
    • 38×16
    • 0.60×0.70
    • 0.56×0.66
    • COB
    • WS0010
    • WEH001202A
    • Winstar
    • 12×2
    • 55.7×32
    • 46×14.5
    • 0.55×0.70
    • 0.45×0.60
    • COB
    • WS0010
    • WEH001601A
    • Winstar
    • 16×1
    • 80×36
    • 66×16
    • 0.60×0.80
    • 0.55×0.75
    • COB
    • WS0010
    • WEH001602A
    • Winstar
    • 16×2
    • 80×36
    • 66×16
    • 0.60×0.70
    • 0.55×0.65
    • COB
    • WS0010
    • WEH001602B
    • Winstar
    • 16×2
    • 122×44
    • 99×24
    • 0.96×1.12
    • 0.90×1.06
    • COB
    • WS0010
    • WEH001602C
    • Winstar
    • 16×2
    • 85×36
    • 66×16
    • 0.60×0.70
    • 0.55×0.65
    • COB
    • WS0010
    • WEH001602D
    • Winstar
    • 16×2
    • 85×30
    • 66×16
    • 0.60×0.70
    • 0.55×0.65
    • COB
    • WS0010
    • WEH001602E
    • Winstar
    • 16×2
    • 84×44
    • 66×16
    • 0.60×0.70
    • 0.55×0.65
    • COB
    • WS0010
    • WEH001602H
    • Winstar
    • 16×2
    • 122×44
    • 98×21
    • 0.96×1.12
    • 0.90×1.06
    • COB
    • WS0010
    • WEH002002A
    • Winstar
    • 20×2
    • 116×37
    • 85×18.6
    • 0.65×0.70
    • 0.60×0.65
    • COB
    • WS0010
    • WEH002002B
    • Winstar
    • 20×2
    • 180×40
    • 149×23
    • 1.22×1.22
    • 1.12×1.12
    • COB
    • WS0010
    • WEH002004A
    • Winstar
    • 20×4
    • 98×60
    • 77×25.2
    • 0.59×0.60
    • 0.54×0.55
    • COB
    • WS0010
    • WEH002004B
    • Winstar
    • 20×4
    • 98×60
    • 77×25.2
    • 0.59×0.60
    • 0.54×0.55
    • COB
    • WS0010
    • WEH004002A
    • Winstar
    • 40×2
    • 182×38.5
    • 154.4×16.5
    • 0.62×0.70
    • 0.57×0.65
    • COB
    • WS0010
    • WEO001602B
    • Winstar
    • 16×2
    • 53×20
    • 36×10
    • 0.34×0.36
    • 0.30×0.32
    • COB
    • WS0012
    • WEO001602C
    • Winstar
    • 16×2
    • 68.5×17.5
    • 58.22×13.52
    • 0.60×0.70
    • 0.57×0.67
    • COG
    • SSD1311M1Z
    • WEO001602G
    • Winstar
    • 16×2
    • 84×44
    • 58.22×13.52
    • 0.60×0.70
    • 0.57×0.67
    • COG
    • SSD1311M1Z
    • WEO002002A
    • Winstar
    • 20×2
    • 84.5×19.28
    • 75.52×13.52
    • 0.65×0.70
    • 0.62×0.67
    • COG
    • SSD1311M1Z
    • WEO002004C
    • Winstar
    • 16×2
    • 84.5×27.5
    • 72.42×22.82
    • 0.60×0.60
    • 0.57×0.57
    • COG
    • SSD1311M1Z
