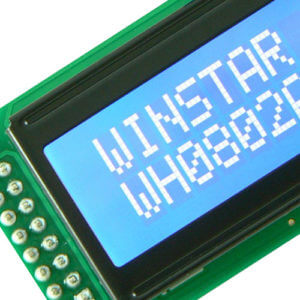

Character LCD Modules
Our range of Character LCD displays are available in dot matrix format 5×7 and 5×8 per character. Construction includes Chip on Board and Chip on Glass with fluid options TN, STN, FSTN and FFSTN. Positive and negative modes along with preferred viewing angle can be specified.
Character LCD modules are available in reflective mode with no LED backlight or transmissive/transflective mode with various LED backlight options.
Wide operating temperature range is optional on all parts along with various operating voltages from 5V down to 3V.
Filter Options
- Part No
- Image
- Manufacturer
- Resolution
- Overall Size
- Viewing Area
- Character Size
- Dot Size
- Display Technology
- Built In Controller
- FDCC0801A
-
-
- Fordata
- 8 X 1
- 84.0 X 44.0
- 61.0 X 15.8
- 6.45 X 10.75
- 1.25 X 1.30
- COB
- SPLC780D Or Equivalent
- FDCC0801B
-
-
- Fordata
- 8 X 1
- 69.0 X 27.0
- 45.2 X 13.8
- 4.20 X 7.71
- 0.80 X 0.92
- COB
- SPLC780D Or Equivalent
- FDCC0802B
-
-
- Fordata
- 8 X 2
- 58.0 X 32.0
- 38.0 X 16.0
- 2.96 X 5.56
- 0.56 X 0.66
- COB
- SPLC780D Or Equivalent
- FDCC0802C
-
-
- Fordata
- 8 X 2
- 40.0 X 35.4
- 30.4 X 13.9
- 2.95 X 4.75
- 0.55 X 0.55
- COB
- SPLC780D Or Equivalent
- FDCC1601A
-
-
- Fordata
- 16 X 1
- 151.0 X 40.0
- 120.0 X 23.0
- 6.00 X 14.54
- 1.15 X 1.77
- COB
- SPLC780D Or Equivalent
- FDCC1601B
-
-
- Fordata
- 16 X 1
- 122.0 X 33.0
- 99.0 X 13.0
- 4.84 X 9.22
- 0.92 X 1.10
- COB
- SPLC780D Or Equivalent
- FDCC1601D
-
-
- Fordata
- 16 X 1
- 80.0 X 36.0
- 64.5 X 14.0
- 3.07 X 6.56
- 0.55 X 0.75
- COB
- SPLC780D Or Equivalent
- FDCC1601E
-
-
- Fordata
- 16 X 1
- 80.0 X 36.0
- 64.0 X 13.8
- 3.07 X 6.56
- 0.55 X 0.75
- COB
- SPLC780D Or Equivalent
- FDCC1601F
-
-
- Fordata
- 16 X 1
- 80.0 X 36.0
- 64.0 X 13.8
- 3.07 X 6.56
- 0.55 X 0.75
- COB
- SPLC780D Or Equivalent
- FDCC1601K
-
-
- Fordata
- 16 X 1
- 73.0 X 24.0
- 62.2 X 13.4
- 3.07 X 8.58
- 0.55 X 0.75
- COB
- SPLC780D Or Equivalent
- FDCC1602A
-
-
- Fordata
- 16 X 2
- 122.0 X 44.0
- 99.0 X 24.0
- 5.20 X 9.55
- 1.00 X 1.15
- COB
- SPLC780D Or Equivalent
- FDCC1602B
-
-
- Fordata
- 16 X 2
- 85.0 X 36.0
- 63.0 X 16.4
- 3.00 X 5.23
- 0.56 X 0.61
- COB
- SPLC780D Or Equivalent
- FDCC1602C
-
-
- Fordata
- 16 X 2
- 85.0 X 32.6
- 64.5 X 16.4
- 3.00 X 5.23
- 0.56 X 0.61
- COB
- SPLC780D Or Equivalent
- FDCC1602D
-
-
- Fordata
- 16 X 2
- 85.0 X 29.5
- 64.5 X 16.4
- 3.00 X 5.23
- 0.56 X 0.61
- COB
- SPLC780D Or Equivalent
- FDCC1602E
-
-
- Fordata
- 16 X 2
- 84.0 X 44.0
- 64.5 X 16.4
- 3.00 X 5.23
- 0.56 X 0.61
- COB
- SPLC780D Or Equivalent
- FDCC1602G
-
-
- Fordata
- 16 X 2
- 80.0 X 36.0
- 64.5 X 16.4
- 3.00 X 5.23
- 0.56 X 0.61
- COB
- SPLC780D Or Equivalent
- FDCC1602H
-
-
- Fordata
- 16 X 2
- 83.4 X 37.5
- 65.5 X 14.8
- 2.95 X 4.35
- 0.50 X 0.55
- COB
- SPLC780D Or Equivalent
- FDCC1602K
-
-
- Fordata
- 16 X 2
- 78.0 X 24.0
- 66.0 X 18.0
- 2.95 X 5.55
- 0.55 X 0.65
- COB
- SPLC780D Or Equivalent
- FDCC1602L
-
-
- Fordata
- 16 X 2
- 65.5 X 36.7
- 54.0 X 14.4
- 2.55 X 4.99
- 0.47 X 0.58
- COB
- SPLC780D Or Equivalent
- FDCC1602N
-
-
- Fordata
- 16 X 2
- 80.0 X 36.0
- 64.0 X 13.8
- 2.95 X 4.35
- 0.55 X 0.50
- COB
- SPLC780D Or Equivalent
- FDCC1602P
-
-
- Fordata
- 16 X 2
- 122.0 X 44.0
- 99.0 X 24.0
- 4.84 X 9.66
- 0.92 X 1.10
- COB
- SPLC780D Or Equivalent
- FDCC1604A
-
-
- Fordata
- 16 X 4
- 87.0 X 60.0
- 61.8 X 25.2
- 2.95 X 4.75
- 0.55 X 0.55
- COB
- SPLC780D Or Equivalent
- FDCC1604B
-
-
- Fordata
- 16 X 4
- 87.0 X 60.0
- 61.8 X 25.2
- 2.95 X 4.75
- 0.55 X 0.55
- COB
- SPLC780D Or Equivalent
- FDCC2002C
-
-
- Fordata
- 20 X 2
- 146.0 X 43.0
- 123.0 X 23.0
- 4.84 X 9.22
- 0.92 X 1.10
- COB
- SPLC780D Or Equivalent
- FDCC2002D
-
-
- Fordata
- 20 X 2
- 116.0 X 37.0
- 83.0 X 18.6
- 3.20 X 5.95
- 0.60 X 0.65
- COB
- SPLC780D Or Equivalent
- FDCC2002G
-
-
- Fordata
- 20 X 2
- 80.0 X 36.0
- 64.5 X 16.4
- 2.49 X 4.62
- 0.46 X 0.53
- COB
- SPLC780D Or Equivalent
- FDCC2004B
-
-
- Fordata
- 20 X 4
- 98.0 X 60.0
- 76.0 X 25.2
- 2.95 X 4.75
- 0.55 X 0.55
- COB
- SPLC780D Or Equivalent
- FDCC2004C
-
-
- Fordata
- 20 X 4
- 77.0 X 47.0
- 60.0 X 22.0
- 2.30 X 4.03
- 0.42 X 0.46
- COB
- SPLC780D Or Equivalent
- FDCC2004D
-
-
- Fordata
- 20 X 4
- 146.0 X 62.5
- 123.0 X 42.5
- 4.84 X 9.22
- 0.92 X 1.10
- COB
- SPLC780D Or Equivalent
- FDCC2004E
-
-
- Fordata
- 20 X 4
- 155.5 X 73.0
- 123.0 X 42.5
- 4.84 X 9.22
- 0.92 X 1.10
- COB
- SPLC780D Or Equivalent
- FDCC2004F
-
-
- Fordata
- 20 X 4
- 98.0 X 60.0
- 76.0 X 26.0
- 2.95 X 4.75
- 0.55 X 0.55
- COB
- SPLC780D Or Equivalent
- FDCC2402E
-
-
- Fordata
- 24 X 2
- 116.0 X 37.0
- 83.0 X 18.6
- 2.70 X 5.55
- 0.50 X 0.65
- COB
- SPLC780D Or Equivalent
- FDCC4001B
-
-
- Fordata
- 40 X 1
- 182.0 X 33.5
- 152.5 X 16.5
- 3.20 X 8.20
- 0.60 X 0.70
- COB
- SPLC780D Or Equivalent
- FDCC4002B
-
-
- Fordata
- 40 X 2
- 182.0 X 33.5
- 152.5 X 16.5
- 3.20 X 5.55
- 0.60 X 0.65
- COB
- SPLC780D Or Equivalent
- FDCC4004A
-
-
- Fordata
- 40 X 4
- 190.0 X 54.0
- 147.0 X 29.5
- 2.78 X 4.89
- 0.50 X 0.55
- COB
- SPLC780D Or Equivalent
- GFA0801A
-
-
- Gifar
- 8 X 1
- 34.0 X 16.0
- 32.0 X 8.0
- N/A
- 0.60 X 0.65
- COG
- ST7032I
- GFA0802A
-
-
- Gifar
- 8 X 2
- 36.0 X 23.5
- 32.0 X 14.5
- N/A
- 0.55 X 0.65
- COG
- ST7032I
- GFA1602A
-
-
- Gifar
- 16 X 2
- 60.0 X 26.0
- 50.0 X 16.0
- N/A
- 0.46 X 0.50
- COG
- ST7032I
- GFA1602B
-
-
- Gifar
- 16 X 2
- 84.0 X 28.0
- 76.0 X 18.0
- N/A
- 0.75 X 0.90
- COG
- ST7032I
- GFA1602C
-
-
- Gifar
- 16 X 2
- 59.0 X 26.0
- 50.0 X 16.0
- N/A
- 0.46 X 0.50
- COG
- ST7032I
- GFA1602E
-
-
- Gifar
- 16 X 2
- 54.0 X 26.0
- 50.0 X 16.0
- N/A
- 0.45 X 0.55
- COG
- ST7032I
- GFA1602F
-
-
- Gifar
- 16 X 2
- 59.0 X 26.0
- 50.0 X 16.0
- N/A
- 0.46 X 0.50
- COG
- ST7032I
- GFA1602G
-
-
- Gifar
- 16 X 2
- 60.0 X 26.0
- 50.0 X 16.0
- N/A
- 0.46 X 0.50
- COG
- ST7032I
- GFA2002A
-
-
- Gifar
- 20 X 2
- 81.0 X 28.3
- 77.0 X 16.5
- N/A
- 0.60 X 0.65
- COG
- NT7605H

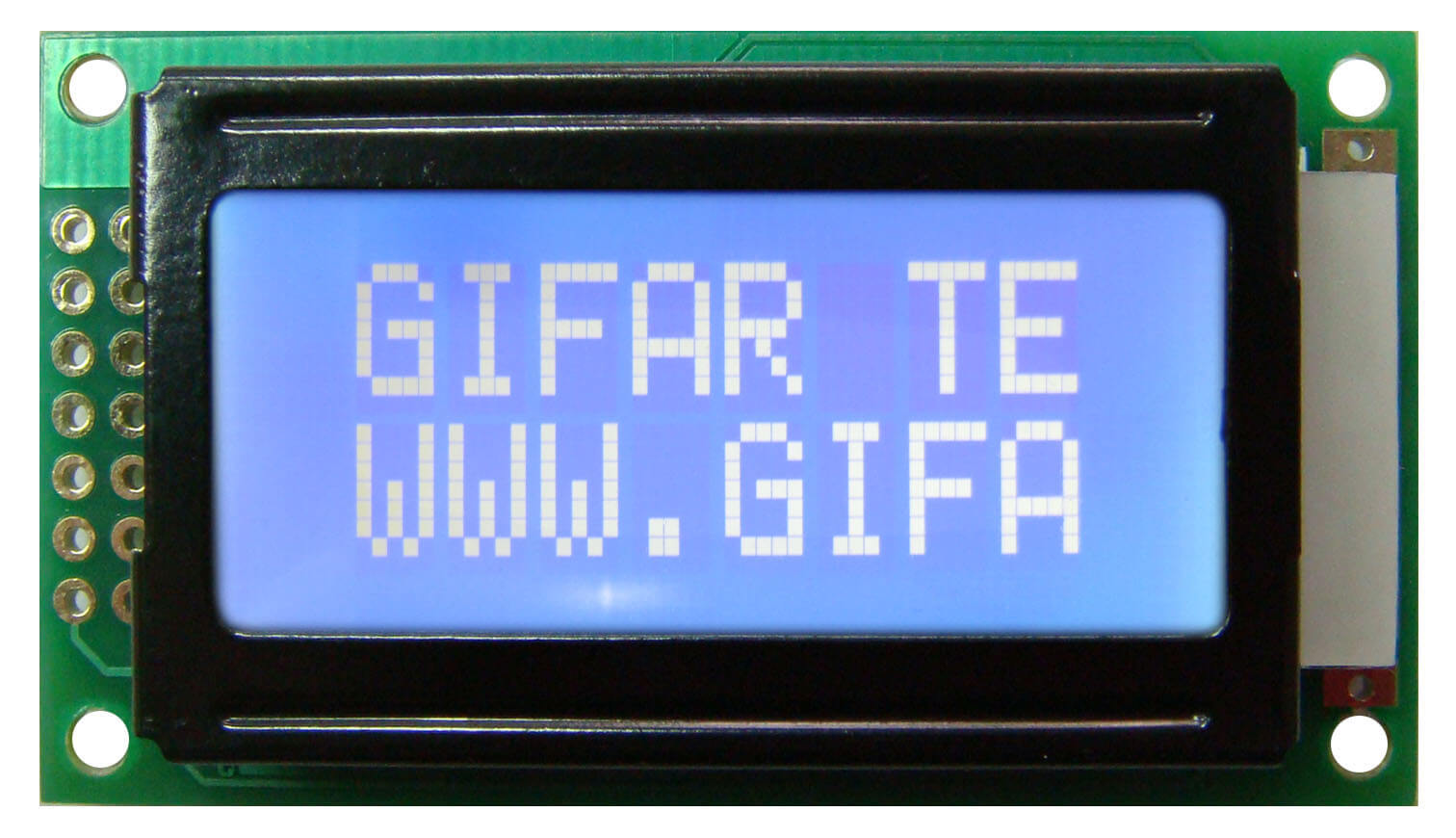

- GFC0802B
-
-
- Gifar
- 8 X 2
- 58.0 X 32.0
- 38.0 X 16.0
- N/A
- 0.56 X 0.66
- COB
- SPLC780D
- GFC1202B
-
-
- Gifar
- 12 X 2
- 55.7 X 32.0
- 46.7 X 17.5
- N/A
- 0.45 X 0.60
- COB
- SPLC780D1
- GFC1601A
-
-
- Gifar
- 16 X 1
- 151.0 X 40.0
- 120.0 X 23.0
- N/A
- 1.15 X 1.77
- COB
- SPLC780D
- GFC1601C
-
-
- Gifar
- 16 X 1
- 122.0 X 33.0
- 99.0 X 13.0
- N/A
- 1.11 X 0.93
- COB
- ST7066U
- GFC1601G
-
-
- Gifar
- 16 X 1
- 80.0 X 36.0
- 65.0 X 16
- N/A
- 0.55 X 0.75
- COB
- SPLC780D1
- GFC1601I
-
-
- Gifar
- 16 X 1
- 80.0 X 36.0
- 66.0 X 16
- N/A
- 0.55 X 0.75
- COB
- SPLC780D1
- GFC1602A
-
-
- Gifar
- 16 X 2
- 84.0 X 44.0
- 64.0 X 17.9
- N/A
- 0.55 X 0.65
- COB
- ST7066U
- GFC1602AB
-
-
- Gifar
- 16 X 2
- 58.0 X 34.0
- 48.6 X 12.0
- N/A
- 0.46 X 0.43
- COB
- ST7066U-0T-B
- GFC1602AE
-
-
- Gifar
- 16 X 2
- 100.0 X 38.8
- 80.0 X 20.4
- N/A
- 0.83 X 0.90
- COB
- ST7066U-0A
- GFC1602AF
-
-
- Gifar
- 16 X 2
- 69.0 X 29.2
- 61.0 X 15.9
- N/A
- 0.55 X 0.65
- COB
- ST7066U-0B
- GFC1602AI
-
-
- Gifar
- 16 X 2
- 75.5 X 260
- 55.0 X 18.0
- N/A
- 0.45 X 0.65
- COB
- SPLC708D1-001A
- GFC1602AJ
-
-
- Gifar
- 16 X 2
- 70.0 X 23.3
- 61.0 X 15.9
- N/A
- 0.55 X 0.65
- COB
- SPLC780D-003A
- GFC1602AK
-
-
- Gifar
- 16 X 2
- 80.0 X 36.0
- 64.5 X 16.0
- N/A
- 0.56 X 0.66
- COB
- SPLC708D1-001A
- GFC1602AM
-
-
- Gifar
- 16 X 2
- 85.0 X 30.0
- 65.0 X 16.0
- N/A
- 0.50 X 0.55
- COB
- SPLC708D1-001A
- GFC1602AN
-
-
- Gifar
- 16 X 2
- 85.0 X 30.0
- 65.0 X 16.0
- N/A
- 0.50 X 0.55
- COB
- SPLC708D1-001A
- GFC1602D
-
-
- Gifar
- 16 X 2
- 85.0 X 36.0
- 66.0 X 16.0
- N/A
- 0.55 X 0.65
- COB
- KS0066
- GFC1602F
-
-
- Gifar
- 16 X 2
- 122.0 X 44.0
- 99.0 X 24.0
- N/A
- 0.92 X 1.10
- COB
- SPLC708D1-002A
- GFC1602G
-
-
- Gifar
- 16 X 2
- 53.0 X 20.0
- 35.9 X 9.8
- N/A
- 0.30 X 0.40
- COB
- ST7066U-0A
- GFC1602K
-
-
- Gifar
- 16 X 2
- 80.0 X 36.0
- 64.5 X 16.0
- N/A
- 0.56 X 0.66
- COB
- SPLC708D1-001A
- GFC1602L
-
-
- Gifar
- 16 X 2
- 80.0 X 36.0
- 64.5 X 16.0
- N/A
- 0.55 X 0.65
- COB
- S6A0069-01
- GFC1602M
-
-
- Gifar
- 16 X 2
- 85.0 X 30.0
- 65.0 X 16.0
- N/A
- 0.50 X 0.55
- COB
- SPLC708D1-001A
- GFC1602S
-
-
- Gifar
- 16 X 2
- 67.4 X 31.0
- 48.0 X 13.0
- N/A
- 0.41 X 0.50
- COB
- SPLC708D1-001A
- GFC1602V
-
-
- Gifar
- 16 X 2
- 85.0 X 36.0
- 66.0 X 16.0
- N/A
- 0.55 X 0.65
- COB
- SPLC708D1-001A
- GFC1602Y
-
-
- Gifar
- 16 X 2
- 77.0 X 44.0
- 66.0 X 16.0
- N/A
- 0.55 X 0.65
- COB
- S6A0069- X 01
- GFC1604A
-
-
- Gifar
- 16 X 4
- 56.2 X 20.8
- 62.0 X 25.6
- N/A
- 0.55 X 0.55
- COB
- SPLC780D
- GFC2001A
-
-
- Gifar
- 20 X 1
- 180.0 X 40.0
- 149.0 X 23.0
- N/A
- 1.15 X 1.77
- COB
- SPLC780D
- GFC2002B
-
-
- Gifar
- 20 X 2
- 115.0 X 36.0
- 83.0 X 18.5
- N/A
- 0.60 X 0.65
- COB
- SPLC780D
- GFC2002D
-
-
- Gifar
- 20 X 2
- 80.0 X 36.0
- 65.0 X 17.9
- N/A
- 0.46 X 0.53
- COB
- S6A0069
- GFC2002E
-
-
- Gifar
- 20 X 2
- 182.0 X 60.0
- 147.0 X 35.2
- N/A
- 1.10 X 1.50
- COB
- SPLC780D
- GFC2002F
-
-
- Gifar
- 20 X 2
- 116.0 X 37.0
- 85.0 X 18.6
- N/A
- 0.60 X 0.65
- COB
- SPLC780D
- GFC2002G
-
-
- Gifar
- 20 X 2
- 85.0 X 30.0
- 65.0 X 16.0
- N/A
- 0.43 X 0.48
- COB
- SPLC780D1
- GFC2002H
-
-
- Gifar
- 20 X 2
- 116.0 X 45.8
- 85.0 X 18.6
- N/A
- 0.60 X 0.65
- COB
- SPLC780D1
- GFC2002I
-
-
- Gifar
- 20 X 2
- 180.0 X 40.0
- 149.0 X 23.0
- N/A
- 1.12 X 1.12
- COB
- SPLC780D1
- GFC2002J
-
-
- Gifar
- 20 X 2
- 146.0 X 43.0
- 123.0 X 23.0
- N/A
- 0.92 X 1.10
- COB
- SPLC780D1
- GFC2002K
-
-
- Gifar
- 20 X 2
- 180.0 X 40.0
- 148.0 X 23.0
- N/A
- 1.10 X 1.10
- COB
- SPLC780D1
- GFC2002L
-
-
- Gifar
- 20 X 2
- 116.0 X 36.0
- 82.8 X 18.5
- N/A
- 0.58 X 0.63
- COB
- SPLC780D
- GFC2002M
-
-
- Gifar
- 20 X 2
- 115.0 X 36.0
- 83.0 X 18.5
- N/A
- 0.65 X 0.65
- COB
- SPLC780D
- GFC2004D
-
-
- Gifar
- 20 X 4
- 77.0 X 47.0
- 60.0 X 22.0
- N/A
- 0.42 X 0.46
- COB
- SPLC780D
- GFC2004J
-
-
- Gifar
- 20 X 4
- 98.0 X 60.0
- 76.0 X 25.2
- N/A
- 0.55 X 0.55
- COB
- SPLC780D
- GFC2004L
-
-
- Gifar
- 20 X 4
- 146.0 X 62.5
- 123.5 X 43.0
- N/A
- 0.92 X 1.10
- COB
- ST7066U
- GFC2402C
-
-
- Gifar
- 24 X 2
- 118.0 X 36.0
- 94.5 X 17.8
- N/A
- 0.60 X 0.65
- COB
- SPLC780D
- GFC4002A
-
-
- Gifar
- 40 X 2
- 182.0 X 33.5
- 154.0 X 15.3
- N/A
- 0.60 X 0.60
- COB
- SPLC780D
- GFR1602AI
-
-
- Gifar
- 16 X 2
- 98.5 X 26.0
- 55.0 X 18.0
- N/A
- 0.45 X 0.78
- COG
- N/A
- GFR1602C
-
-
- Gifar
- 16 X 2
- 75.5 X 26.0
- 55.0 X 18.0
- N/A
- 0.45 X 0.65
- COG
- GMRU20X4
- GFR1602CA
-
-
- Gifar
- 16 X 2
- 75.5 X 26.0
- 55.0 X 18.0
- N/A
- 0.45 X 0.65
- COG
- RW1067C
- GFR1602GB
-
-
- Gifar
- 16 X 2
- 53.0 X 20.0
- 35.9 X 9.8
- N/A
- 0.30 X 0.40
- COG
- N/A
- GFR1602GC
-
-
- Gifar
- 16 X 2
- 79.0 X 20.0
- 35.9 X 9.8
- N/A
- 0.30 X 0.40
- COG
- N/A
- GFR1602IA
-
-
- Gifar
- 16 X 2
- 109.0 X 26.8
- 64.0 X 16.0
- N/A
- 0.55 X 0.65
- COG
- N/A
- GFR1602M
-
-
- Gifar
- 16 X 2
- 85.0 X 30.0
- 65.0 X 16.0
- N/A
- 0.50 X 0.55
- COG
- SPLC780D1
- GFR2002PB
-
-
- Fordata
- 20 X 2
- 93.8 X 26.0
- 54.0 X 15.0
- N/A
- 0.35 X 0.52
- COG
- N/A
- GFR2004J
-
-
- Fordata
- 20 X 4
- 98.0 X 60.0
- 76.0 X 25.2
- N/A
- 0.55 X 0.55
- COG
- N/A
- GFU2004J
-
-
- Gifar
- 20 X 4
- 98.0 X 60.0
- 76.0 X 25.2
- N/A
- 0.55 X 0.55
- COG
- N/A
- TMBC08265A
-
-
- Tri-T
- 8 X 2
- 58.0 X 32.0
- 35.0 X 15.0
- 2.45 X 5.00
- 0.45 X 0.50
- COB
- S6A0069
- TMBC16166
-
-
- Tri-T
- 16 X 1
- 80.0 X 36.0
- 64.5 X 13.8
- 3.15 X 6.30
- 0.55 X 0.55
- COB
- S6A0069
- TMBC16263A
-
-
- Tri-T
- 16 X 2
- 53.0 X 20.0
- 36.0 X 10.0
- 1.85 X 3.15
- 0.35 X 0.33
- COB
- S6A0069
- TMBC16265B
-
-
- Tri-T
- 16 X 2
- 80.0 X 36.0
- 61.0 X 15.8
- 2.95 X 5.55
- 0.55 X 0.55
- COB
- S6A0069
- TMBC16265F
-
-
- Tri-T
- 16 X 2
- 80.0 X 36.0
- 62.2 X 17.9
- 2.95 X 5.55
- 0.55 X 0.55
- COB
- S6A0069
- TMBC16265H
-
-
- Tri-T
- 16 X 2
- 80.0 X 36.0
- 60.8 X 15.6
- 2.95 X 5.55
- 0.65 X 0.55
- COB
- S6A0069
- TMBC16265K
-
-
- Tri-T
- 16 X 2
- 85.0 X 29.5
- 61.0 X 15.8
- 2.95 X 5.55
- 0.65 X 0.55
- COB
- S6A0069
- TMBC16265L
-
-
- Tri-T
- 16 X 2
- 84.0 X 44.0
- 61.0 X 15.8
- 2.95 X 5.55
- 0.65 X 0.55
- COB
- S6A0069
- TMBC16265M
-
-
- Tri-T
- 16 X 2
- 80.0 X 36.0
- 61.0 X 15.8
- 2.95 X 5.55
- 0.55 X 0.55
- COB
- S6A0069
- TMBC16268
-
-
- Winstar
- 16 X 2
- 93.0 X 39.0
- 75.0 X 25.3
- 3.81 X 8.76
- 0.73 X 0.73
- COB
- S6A0069
- TMBC16269A
-
-
- Tri-T
- 16 X 2
- 122.0 X 44.0
- 99.0 X 24.0
- 4.84 X 9.66
- 1.10 X 0.92
- COB
- S6A0069
- TMBC16269C
-
-
- Tri-T
- 16 X 2
- 122.0 X 44.0
- 99.0 X 24.0
- 4.84 X 9.66
- 1.10 X 0.92
- COB
- S6A0069
- TMBC16269D
-
-
- Tri-T
- 16 X 2
- 122.0 X 43.0
- 99.0 X 23.0
- 4.84 X 9.22
- 1.10 X 0.92
- COB
- S6A0069
- TMBC16269E
-
-
- Tri-T
- 16 X 2
- 122.0 X 44.0
- 99.0 X 24.0
- 4.84 X 9.66
- 0.92 X 0.92
- COB
- S6A0069
- TMBC16465
-
-
- Tri-T
- 16 X 4
- 87.0 X 60.0
- 61.2 X 25.0
- 2.95 X 4.75
- 0.55 X 0.55
- COB
- S6A0069
- TMBC16465B
-
-
- Fordata
- 20 X 1
- 160.0 X 41.6
- 140.0 X 20.0
- 5.65 X 15.90
- 1.50 X 1.05
- COB
- S6A0069
- TMBC20265A
-
-
- Tri-T
- 20 X 2
- 116.0 X 37.0
- 83.0 X 18.5
- 3.20 X 5.55
- 0.65 X 0.60
- COB
- S6A0069
- TMBC20433B
-
-
- Tri-T
- 20 X 4
- 68.0 X 26.8
- 61.0 X 19.0
- 2.32 X 3.73
- 0.44 X 0.44
- COB
- S6A0069
- TMBC20464B
-
-
- Tri-T
- 20 X 4
- 198.0 X 60.0
- 76.0 X 25.2
- 2.95 X 4.75
- 0.55 X 0.55
- COB
- S6A0069
- TMBC20468A
-
-
- Tri-T
- 20 X 4
- 146.0 X 62.5
- 123.0 X 43.0
- 4.85 X 9.15
- 1.10 X 0.93
- COB
- S6A0069
- TMBC24265B
-
-
- Tri-T
- 24 X 2
- 118.0 X 36.0
- 94.5 X 17.9
- 3.20 X 5.55
- 0.60 X 0.65
- COB
- S6A0069
- TMBC40266B
-
-
- Tri-T
- 40 X 2
- 182.0 X 33.5
- 154.4 X 15.8
- 3.20 X 5.55
- 0.65 X 0.60
- COB
- S6A0069
- TMBC40465A
-
-
- Tri-T
- 40 X 4
- 190.0 X 54.0
- 147.0 X 29.5
- 2.78 X 4.97
- 0.65 X 0.65
- COB
- S6A0069
- TMBC81809
-
-
- Tri-T
- 8 X 1
- 84.0 X 44.0
- 61.0 X 15.0
- 6.45 X 10.75
- 1.25 X 1.25
- COB
- S6A0069
- TMGC12186
-
-
- Tri-T
- 12 X 1
- 48.5 X 17.0
- 45.5 X 8.0
- 3.72 X 6.48
- 0.90 X 0.62
- COG
- ST7032i
- TMGC16265B
-
-
- Tri-T
- 16 X 2
- 67.5 X 26.5
- 63.5 X 16.5
- 2.96 X 5.56
- 0.66 X 0.56
- COG
- ST7032
- TMGC16265I
-
-
- Winstar
- 16 X 2
- 67.5 X 26.0
- 63.5 X 16.5
- 2.97 X 5.57
- 0.67 X 0.57
- COB
- SY7032i
- TMGC16269D
-
-
- Fordata
- 16 X 2
- 121.5 X 43.5
- 94.0 X 21.0
- 4.72 X 9.01
- 1.10 X 0.95
- COG
- ST7032i
- WH0802A1
-
-
- Winstar
- 8 X 2
- 58.0 X 32.0
- 38.0 X 16.0
- 2.96 X 5.56
- 0.56 X 0.66
- COB
- ST7066
- WH0802A1-GLL
-
-
- Winstar
- 8 X 2
- 58.0 X 32.0
- 38.0 X 16.0
- 2.96 X 5.56
- 0.56 X 0.66
- VATN
- ST7066
- WH0802A1-PLL
-
-
- Winstar
- 8 X 2
- 58.0 X 32.0
- 38.0 X 16.0
- 2.96 X 5.56
- 0.56 X 0.66
- VATN
- ST7066
- WH0802A1-RLL
-
-
- Winstar
- 8 X 2
- 58.0 X 32.0
- 38.0 X 16.0
- 2.96 X 5.56
- 0.56 X 0.66
- VATN
- ST7066
- WH0802A1-SLL
-
-
- Winstar
- 8 X 2
- 58.0 X 32.0
- 38.0 X 16.0
- 2.96 X 5.56
- 0.56 X 0.66
- VATN
- ST7066
- WH0802A1-YLL
-
-
- Winstar
- 8 X 2
- 58.0 X 32.0
- 38.0 X 16.0
- 2.96 X 5.56
- 0.56 X 0.66
- VATN
- ST7066
- WH1202A
-
-
- Winstar
- 12 X 2
- 55.7 X 32.0
- 46.0 X 14.5
- 2.65 X 5.50
- 0.45 X 0.60
- COB
- ST7066
- WH1601A
-
-
- Winstar
- 16 X 1
- 80.0 X 36.0
- 66.0 X 16.0
- 3.07 X 6.56
- 0.55 X 0.75
- COB
- ST7066
- WH1601A-GLL
-
-
- Winstar
- 16 X 1
- 80.0 X 36.0
- 66.0 X 16.0
- 3.07 X 6.56
- 0.55 X 0.75
- VATN
- ST7066
- WH1601A-PLL
-
-
- Winstar
- 16 X 1
- 80.0 X 36.0
- 66.0 X 16.0
- 3.07 X 6.56
- 0.55 X 0.75
- VATN
- ST7066
- WH1601A-RLL
-
-
- Winstar
- 16 X 1
- 80.0 X 36.0
- 66.0 X 16.0
- 3.07 X 6.56
- 0.55 X 0.75
- VATN
- ST7066
- WH1601A-SLL
-
-
- Winstar
- 16 X 1
- 80.0 X 36.0
- 66.0 X 16.0
- 3.07 X 6.56
- 0.55 X 0.75
- VATN
- ST7066
- WH1601A-YLL
-
-
- Winstar
- 16 X 1
- 80.0 X 36.0
- 66.0 X 16.0
- 3.07 X 6.56
- 0.55 X 0.75
- VATN
- ST7066
- WH1601B
-
-
- Winstar
- 16 X 1
- 85.0 X 28.0
- 66.0 X 16.0
- 3.07 X 6.56
- 0.55 X 0.75
- COB
- ST7066
- WH1601L
-
-
- Winstar
- 16 X 1
- 122.0 X 33.0
- 99.0 X 13.0
- 4.84 X 8.06
- 0.92 X 1.10
- COB
- ST7066
- WH1602A
-
-
- Winstar
- 16 X 2
- 84.0 X 44.0
- 66.0 X 16.0
- 2.95 X 5.55
- 0.55 X 0.65
- COB
- ST7066
- WH1602B
-
-
- Winstar
- 16 X 2
- 80.0 X 36.0
- 66.0 X 16.0
- 2.95 X 5.55
- 0.55 X 0.65
- COB
- ST7066
- WH1602B-GLL
-
-
- Winstar
- 16 X 2
- 80.0 X 36.0
- 66.0 X 16.0
- 2.95 X 5.55
- 0.55 X 0.65
- VATN
- ST7066
- WH1602B-PLL
-
-
- Winstar
- 16 X 2
- 80.0 X 36.0
- 66.0 X 16.0
- 2.95 X 5.55
- 0.55 X 0.65
- VATN
- ST7066
- WH1602B-RLL
-
-
- Winstar
- 16 X 2
- 80.0 X 36.0
- 66.0 X 16.0
- 2.95 X 5.55
- 0.55 X 0.65
- VATN
- ST7066
- WH1602B-SLL
-
-
- Winstar
- 16 X 2
- 80.0 X 36.0
- 66.0 X 16.0
- 2.95 X 5.55
- 0.55 X 0.65
- VATN
- ST7066
- WH1602B-YLL
-
-
- Winstar
- 16 X 2
- 80.0 X 36.0
- 66.0 X 16.0
- 2.95 X 5.55
- 0.55 X 0.65
- VATN
- ST7066
- WH1602C
-
-
- Winstar
- 16 X 2
- 80.0 X 36.0
- 66.0 X 16.0
- 2.95 X 5.55
- 0.55 X 0.65
- COB
- ST7066
- WH1602D
-
-
- Winstar
- 16 X 2
- 85.0 X 30.0
- 66.0 X 16.0
- 2.95 X 5.55
- 0.55 X 0.65
- COB
- ST7066
- WH1602J
-
-
- Winstar
- 16 X 2
- 80.0 X 36.0
- 66.0 X 16.0
- 2.95 X 5.55
- 0.55 X 0.65
- COB
- ST7066
- WH1602L1
-
-
- Winstar
- 16 X 2
- 122.0 X 44.0
- 99.0 X 24.0
- 4.80 X 8.56
- 0.92 X 1.10
- COB
- ST7066
- WH1602M
-
-
- Winstar
- 16 X 2
- 85.0 X 32.6
- 66.0 X 16.0
- 2.95 X 5.55
- 0.55 X 0.65
- COB
- ST7066
- WH1602O
-
-
- Winstar
- 16 X 2
- 85.0 X 25.2
- 66.0 X 16.0
- 2.95 X 5.55
- 0.55 X 0.65
- COB
- ST7066
- WH1602P
-
-
- Winstar
- 16 X 2
- 85.0 X 25.2
- 66.0 X 16.0
- 2.95 X 5.55
- 0.55 X 0.65
- COB
- ST7066
- WH1602S
-
-
- Winstar
- 16 X 2
- 59.0 X 29.3
- 52.0 X 15.0
- 2.45 X 4.67
- 0.45 X 0.54
- COB
- ST7066
- WH1602T
-
-
- Winstar
- 16 X 2
- 65.4 X 28.2
- 54.8 X 19.0
- 2.67 X 5.57
- 0.51 X 0.67
- COB
- ST7066
- WH1602V2
-
-
- Winstar
- 16 X 2
- 66.7 X 23.3
- 61 X 15.9
- 2.95 X 5.55
- 0.55 X 0.65
- COB
- ST7066
- WH1602W
-
-
- Winstar
- 16 X 2
- 80.0 X 36.0
- 66.0 X 16.0
- 2.95 X 5.55
- 0.55 X 0.65
- COB
- ST7066
- WH1604A
-
-
- Winstar
- 16 X 4
- 87.0 X 60.0
- 62.0 X 26.0
- 2.95 X 4.75
- 0.55 X 0.55
- COB
- ST7066
- WH1604A-GLL
-
-
- Winstar
- 16 X 4
- 87.0 X 60.0
- 62.0 X 26.0
- 2.95 X 4.75
- 0.55 X 0.65
- VATN
- ST7066
- WH1604A-PLL
-
-
- Winstar
- 16 X 4
- 87.0 X 60.0
- 62.0 X 26.0
- 2.95 X 4.75
- 0.55 X 0.65
- VATN
- ST7066
- WH1604A-RLL
-
-
- Winstar
- 16 X 4
- 87.0 X 60.0
- 62.0 X 26.0
- 2.95 X 4.75
- 0.55 X 0.65
- VATN
- ST7066
- WH1604A-SLL
-
-
- Winstar
- 16 X 4
- 87.0 X 60.0
- 62.0 X 26.0
- 2.95 X 4.75
- 0.55 X 0.65
- VATN
- ST7066
- WH1604A-YLL
-
-
- Winstar
- 16 X 4
- 87.0 X 60.0
- 62.0 X 26.0
- 2.95 X 4.75
- 0.55 X 0.65
- VATN
- ST7066
- WH1604B
-
-
- Winstar
- 16 X 4
- 70.6 X 60.0
- 60.0 X 32.6
- 2.95 X 4.75
- 0.55 X 0.55
- COB
- ST7066
- WH2002A
-
-
- Winstar
- 20 X 2
- 116.0 X 37.0
- 85.0 X 18.6
- 3.2 X 5.55
- 0.60 X 0.65
- COB
- ST7066
- WH2002D
-
-
- Winstar
- 20 X 2
- 89.0 X 21.5
- 75.0 X 15.0
- 2.95 X 5.15
- 0.55 X 0.60
- COB
- ST7066
- WH2002G-GLL
-
-
- Winstar
- 20 X 2
- 115.0 X 36.0
- 85.0 X 18.6
- 3.20 X 5.55
- 0.60 X 0.65
- VATN
- ST7066
- WH2002G-PLL
-
-
- Winstar
- 20 X 2
- 115.0 X 36.0
- 85.0 X 18.6
- 3.20 X 5.55
- 0.60 X 0.65
- VATN
- ST7066
- WH2002G-RLL
-
-
- Winstar
- 20 X 2
- 115.0 X 36.0
- 85.0 X 18.6
- 3.20 X 5.55
- 0.60 X 0.65
- VATN
- ST7066
- WH2002G-SLL
-
-
- Winstar
- 20 X 2
- 115.0 X 36.0
- 85.0 X 18.6
- 3.20 X 5.55
- 0.60 X 0.65
- VATN
- ST7066
- WH2002G-YLL
-
-
- Winstar
- 20 X 2
- 115.0 X 36.0
- 85.0 X 18.6
- 3.20 X 5.55
- 0.60 X 0.65
- VATN
- ST7066
- WH2002L
-
-
- Winstar
- 20 X 2
- 180.0 X 40.0
- 149.0 X 23.0
- 6.00 X 9.66
- 1.12 X 1.12
- COB
- ST7066
- WH2002M
-
-
- Winstar
- 20 X 2
- 146.0 X 43.0
- 123.0 X 23.0
- 4.84 X 9.22
- 0.92 X 1.10
- COB
- ST7066
- WH2004A
-
-
- Winstar
- 20 X 4
- 98.0 X 60.0
- 77.0 X 25.2
- 2.95 X 4.75
- 0.55 X 0.55
- COB
- ST7066
- WH2004A-GLL
-
-
- Winstar
- 20 X 4
- 98.0 X 60.0
- 77.0 X 25.2
- 2.95 X 4.75
- 0.55 X 0.55
- VATN
- ST7066
- WH2004A-PLL
-
-
- Winstar
- 20 X 4
- 98.0 X 60.0
- 77.0 X 25.2
- 2.95 X 4.75
- 0.55 X 0.55
- VATN
- ST7066
- WH2004A-RLL
-
-
- Winstar
- 20 X 4
- 98.0 X 60.0
- 77.0 X 25.2
- 2.95 X 4.75
- 0.55 X 0.55
- VATN
- ST7066
- WH2004A-SLL
-
-
- Winstar
- 20 X 4
- 98.0 X 60.0
- 77.0 X 25.2
- 2.95 X 4.75
- 0.55 X 0.55
- VATN
- ST7066
- WH2004A-YLL
-
-
- Winstar
- 20 X 4
- 98.0 X 60.0
- 77.0 X 25.2
- 2.95 X 4.75
- 0.55 X 0.55
- VATN
- ST7066
- WH2004B
-
-
- Winstar
- 20 X 4
- 98.0 X 60.0
- 77.0 X 25.2
- 2.95 X 4.75
- 0.55 X 0.55
- COB
- ST7066
- WH2004D
-
-
- Winstar
- 20 X 4
- 77.0 X 47.0
- 60.0 X 22.0
- 2.30 X 4.03
- 0.42 X 0.46
- COB
- ST7066
- WH2004G
-
-
- Winstar
- 20 X 4
- 87.0 X 58.0
- 74.4 X 24.8
- 2.95 X 4.75
- 0.55 X 0.55
- COB
- ST7066
- WH2004H
-
-
- Winstar
- 20 X 4
- 87.0 X 58.0
- 74.4 X 24.8
- 2.95 X 4.75
- 0.55 X 0.55
- COB
- ST7066
- WH2004L
-
-
- Winstar
- 20 X 4
- 146.0 X 62.5
- 123.5 X 43
- 4.84 X 9.22
- 0.92 X 1.10
- COB
- ST7066
- WH2402A
-
-
- Winstar
- 24 X 2
- 118.0 X 36.0
- 94.5 X 16.0
- 3.20 X 5.55
- 0.60 X 0.65
- COB
- ST7066
- WH4002A
-
-
- Winstar
- 40 X 2
- 182.0 X 33.5
- 154.4 X 16.5
- 3.20 X 5.55
- 0.60 X 0.65
- COB
- ST7066
- WH4004A
-
-
- Winstar
- 40 X 4
- 190.0 X 54.0
- 147.0 X 29.5
- 2.78 X 4.89
- 0.50 X 0.55
- COB
- ST7066
- WO1602B
-
-
- Winstar
- 16 X 2
- 85.0 X 30.0
- 76.0 X 18.0
- N/A
- 0.75 X 0.90
- COG
- ST7032i
- WO1602F
-
-
- Winstar
- 16 X 2
- 72.1 X 29.6
- 61.0 X 15.1
- N/A
- 0.55 X 0.65
- COG
- ST7032i
- WO1602G
-
-
- Winstar
- 16 X 2
- 74.2 X 25.2
- 61.0 X 15.1
- N/A
- 0.55 X 0.65
- COG
- ST7032i
- WO1602H
-
-
- Winstar
- 16 X 2
- 62.8 X 23.0
- 51.5 X 12.2
- N/A
- 0.48 X 0.54
- COG
- ST7032i
- WO1602I
-
-
- Winstar
- 16 X 2
- 51.2 X 20.7
- 40.0 X 10.0
- N/A
- 0.36 X 0.43
- COG
- ST7032i
- WO2002A
-
-
- Winstar
- 20 X 2
- 74.2 X 25.2
- 61.0 X 15.1
- N/A
- 0.45 X 0.54
- COG
- ST7036i
- WO2004A
-
-
- Winstar
- 20 X 4
- 74.3 X 36.4
- 60.5 X 22.2
- N/A
- 0.45 X 0.54
- COG
- SSD1803AM1Z
- WO2402A
-
-
- Winstar
- 24 X 2
- 86.2 X 24.7
- 72.3 X 11.8
- N/A
- 0.45 X 0.54
- COG
- RW1062
How can we help? Get in touch with us.
