NEW “All in One” 5.7″ TFT Displays Modules
Winstar’s latest 5.7 inch TFT Display module includes a PCAP touch screen, and built in PIC24 controller. This latest addition to Winstar’s “Clever System”- All in One series of displays, offer designers a simplified route to create attractive and intuitive user interfaces.

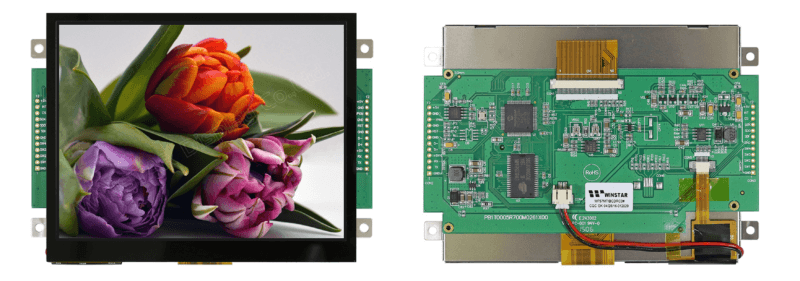

The WF57MTIBCDRGB 5.7″ TFT module has dimension of 141.12 x 101.55 mm, and AA size of 115.2 x 86.4 mm. It supports UART/SPI interfaces and can be operated at temperatures from -20℃ to +70℃. Storage temperatures range is from -30℃ to +80℃.
Key Features
- Size : 5.7”
- Resolution : 320 x 240 dots
- View Direction : 12H
- Interface : UART/SPI
- Built-in Controller : PIC24
- Control-Board : Yes
- Brightness(cd/m2) : 700
- Frame Through Hole : Yes
- Touch Screen : Projected Capacitive Touch Panel (PCAP)
- Detect Point : 1 Finger
- O-Film: Option
Contact us for more information
Download datasheet
WF57MTIBCDRGB
