New 0.96″ OLED Display for wearable and portable devices

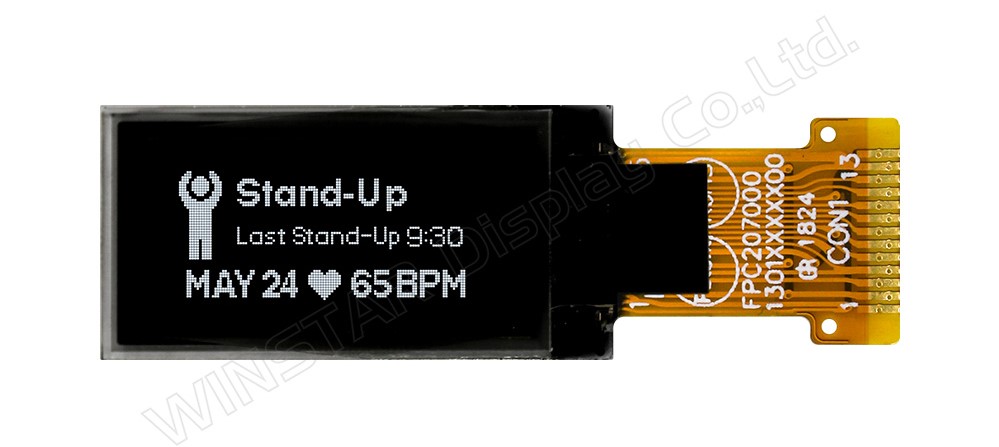

WEO064128A model is ideal for wearable, and portable IOT devices. The display screen size and shape makes it an excellent choice for many IOT consumer products.
WEO064128A model is a COG OLED display, diagonal size 0.96 inch, with resolution of 64×128 dots. Using a built-in SH1107 IC, the module supports 4-wire SPI and I2C interface. The display and control IC require 3V supply and driving duty is 1/64 .
Key Features
- Size: 0.96 inch
- Dot Matrix: 64 x 128
- Built-in controller SH1107
- Power Supply: 3V
- 1/64 duty
- Interface: SPI, I2C
- Display colour: monochrome
- Module dimension: 14.0 × 28.0 × 1.26mm
