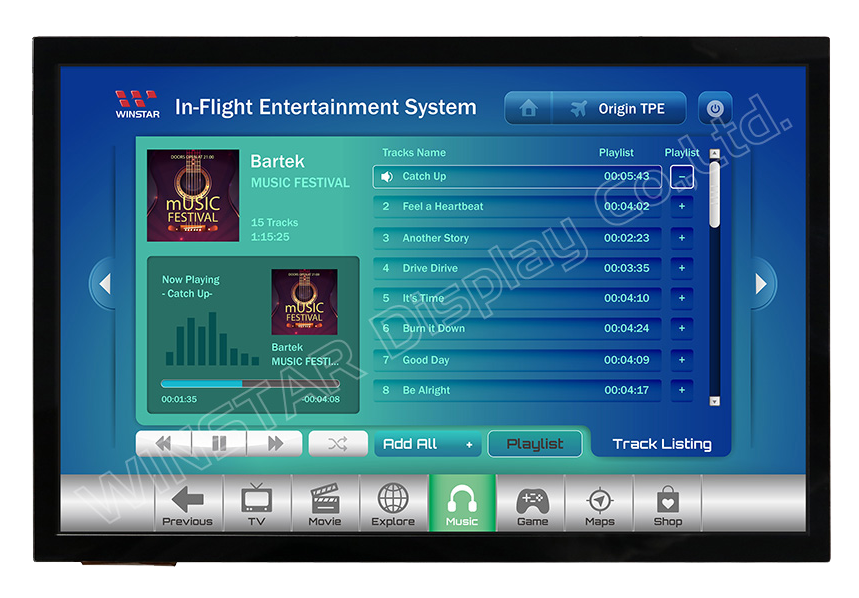

12.1″ PCAP TFT Module (LVDS) with Linux / Android Embedded System
The WUAB series TFT’s are based on the NXP i.MX6 embedded System-on-chip (SoC) which features a scalable multi-core ARM Cortex™ A9 processor. The module delivers high CPU and graphical performance with minimum power consumption.
This display is ideal for various applications including Digital Signage, Medical Devices, Navigation, Industrial Automation, Avionics, Entertainment systems, POS, Data Acquisition, Robotics, Gaming and more.
The WUAB series incorporates DVFS (Dynamic Voltage and Frequency Scaling) and Thermal Throttling, enabling the system to adjust operating frequency and voltage continuously.
By changing the workload and temperature, the display can be adjusted to have the best performance with the lowest power consumption.
Supporting a wide range of interfaces from simple GPIOs, industry standard I2C, SPI, and UART buses, through to high-speed USB 2.0 interface and a 16/32bit external memory bus (parallel bus). RGB and LVDS interface offers users the capacity to connect with high resolution displays.
The single board of i.MX6 supports various connectors including: Host USB, USB OTG, DC Jack, Audio Jack and RJ45. Connectors support pin header/connector in 1.27mm, 2.0mm and 2.54mm sizes.
Key Features
- Suitable for 12.1-inch TFT series
- Interface: LVDS
- Touch Screen: Projected Capacitive touch screen (PCAP)
- DDR3 RAM Size: 1GByte
- DDR3 RAM Memory Width: 64-bit
- eMMC NAND Flash (8bit): 8GB
- Expansion Memory: Micro SD Socket
- USB: 2 Standard USB 2.0 type A: 1 x USB 2.0 OTG
- Network: Ethernet. 1 GbE + IEEE1588 with RJ45 slot.
- WIFI/BT. BLE 4.0 (internal USB for option WIFI Module, Optional Parts)
- Touch Panel: Resistive. 4-wire Resistive type (onboard).
- Capacitive: CTP is driven IIC interface
- Power: Voltage DC9V ~ DC24V±10%.
- Consumption: 2.5W
- Environment Temperature: -20℃ ~ 70℃ (Operating). -30℃ ~ 80℃ (Storage)
- Operating System: Android 4.4.2 or Linux Yocto Daisy 1.6
- Dimension: 130mm x 95mm x 20mm
- Certification: CE/FCC
